ThrottleStop / screenshots

Screenshots ThrottleStop

These are real ThrottleStop screenshots from the program itself - main monitor, FIVR, TPL, Options, Limit Reasons, TS Bench - and ThrottleStop sitting on top of a game. Click any shot to open it full size.

Main window

ThrottleStop 9.2 - TechPowerUp logo, FID table, FIVR undervolt -75.2 mV.

ThrottleStop screenshot Core i7-13700HX main interface — i7-13700HX, Speed Shift SST, GPU 40.9°C in the footer.

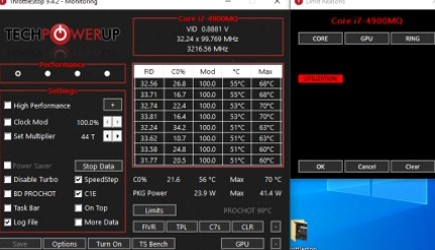

ThrottleStop 8.4.2 screenshot with Limit Reasons CORE GPU RING — 8.4.2 on i7-4900MQ plus Limit Reasons (CORE / GPU / RING).

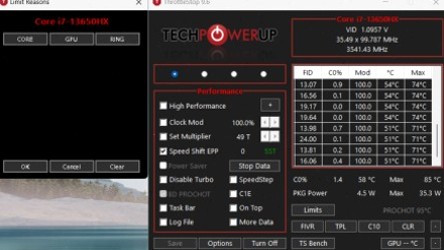

ThrottleStop 9.6 screenshot Core i7-13650HX — 9.6 on i7-13650HX, 4.3 W package at idle, PROCHOT 95°C.

FIVR - ThrottleStop undervolt screenshots

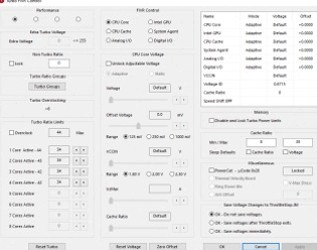

ThrottleStop FIVR screenshot Unlock Adjustable Voltage — FIVR Control, Adaptive, IccMax.

ThrottleStop FIVR dark theme screenshot with turbo ratio groups — Dark FIVR, turbo ratio groups 0-7.

ThrottleStop FIVR voltage table screenshot — Voltage table + cache ratio.

ThrottleStop FIVR screenshot from a forum tuning post — FIVR from a live tuning capture.

Another ThrottleStop FIVR screenshot — FIVR, extra voltage and lock.

ThrottleStop FIVR screenshot used while gaming setup — FIVR while preparing a game profile.

TPL and Limit Reasons

ThrottleStop TPL screenshot PL1 90 W PL2 100 W — TPL - PL1 90 / PL2 100.

ThrottleStop and TPL side by side screenshot — Main + TPL on i5-12450H.

Options again - Game profile, DTS alarm, NVIDIA GPU tick.

ThrottleStop FIVR screenshot Extra Voltage and turbo ratio groups — FIVR with Extra Voltage 0-255 and ratio groups.

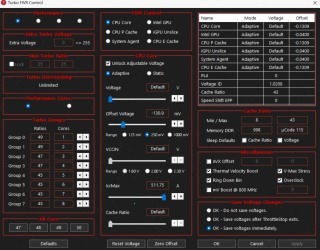

ThrottleStop FIVR screenshot AVX offset and thermal velocity boost — FIVR with AVX Offset, Thermal Velocity Boost, IccMax 511.75 A.

ThrottleStop in-game and under load

ThrottleStop does not inject an OSD. These screenshots ThrottleStop users actually take: the windows left on top of a title, or TS Bench + GPU-Z beside a heat-soaked session.

ThrottleStop in-game screenshot over The Legend of Zelda Breath of the Wild — In-game: ThrottleStop 9.4.2 and TS Bench over Breath of the Wild. i7-6700HQ, 86°C, 2.94 GHz.

ThrottleStop TS Bench and GPU-Z load screenshot — TS Bench + ThrottleStop 8.4.2 + GPU-Z 2.38. GPU 83°C / 95% load.

ThrottleStop during game-like load with EDP OTHER limit — Load screenshot: EDP OTHER red, GPU-Z 81°C, TS Bench 50 s in.
